TNC-Z0094

Electrical specifications

Operating voltage

26.5 – 31.6 V DC

Max. current consumption from AS-i

300 mA

Built-in watchdog

Yes

Scope of application

Design

Clamp rail housing

Application

Control cabinet installation

Inputs

Number of digital inputs

4

Input circuitry for digital inputs

"PNP

Sensor power supply to the inputs

AS-i

Power supply

18–30 V DC

Maximum current carrying capacity of all inputs combined

200

High input current

6–10 mA

Low input current

0 – 2 mA

Switching level: High

> 11 V

Short-circuit resistance of digital inputs

Yes

Outputs

DC voltage range

24

AC voltage range

10–240 V

Current capacity per output

"6,000 mA

Current-carrying capacity of outputs

"6 A

Number of relay outputs

4

Contact current rating

"6 A

Contact rating for normally open (NO) contacts: B300: 6,000

cycles)"

Short-circuit proof

No

Galvanically isolated

Yes

Environmental conditions

Ambient temperature

-25 – 60 °C

Maximum permissible relative humidity

90 per cent (non-condensing)

Maximum height above sea level

2,000 m

Protection class

IP 20

Degree of contamination

2

AS-i parameters

AS-i version

"2.11

AS-i addressing

Address socket

Extended addressing mode

No

AS-i profile

S-7.0.E

AS-i I/O configuration

7 hex

AS-i ID code

0.E hex

AS-i certificate applied for

Yes

Data bit

D0

D1

D2

D3

Entrance

I-1

I-2

I-3

I-4

Exit

O-1

O-2

O-3

O-4

Mechanical specifications

Weight

275.7 g

Housing

Rectangular

Installation method

"Mounting on a mounting rail

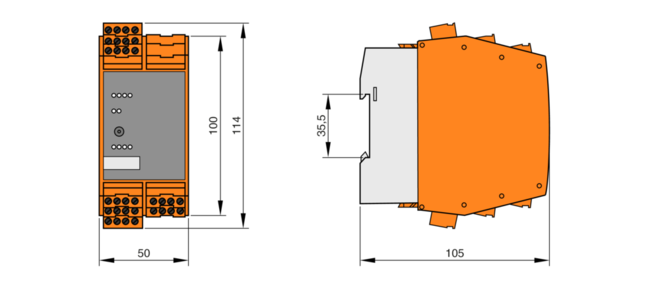

Dimensions

93 × 50 × 108 mm

Materials

PC-GF20

Optional accessories

Connector plug

Displays / Controls

Advertisement

Switch state

LED, yellow I1 – I4, O1 – O4

Advertisement

Operation

LED, green AS-i

Advertisement

Error

LED, red
